Memories
-
Last refreshed 8:53:27 PM
Refresh every
Geothermal
60s
-
Last refreshed 8:53:27 PM
| Temperature | Humidity | Mode | Call | Heat Target | Cool Target | Damper | |
|---|---|---|---|---|---|---|---|
| Zone 1 | 74.8°F | 51% | cool | c1 | 64°F | 74°F | open |
| Zone 2 | 75.4°F | 51% | cool | standby | 64°F | 76°F | closed |
| Outside | 80.5°F | 74% |
Heat Pump: 3128 Watts
| Water | Entering: 74.8°F | Leaving: 80.4°F | Heat Rejection: 46172 Btu/h | Heat Extraction: 0 Btu/h |
| Air | Return: 74.8°F | Supply: 50.3°F | ||
| Blower | Call: On | Watts: 292 | Speed (Maximum 10): 5 | |
| Loop Pump | Call: On | Watts: 472 | Flow: 17.0gpm | |
| Compressor | Call: On | Watts: 2364 | Stage: 1 | Reversing Valve: On (Cool) |
| Compressor | Suction Temp: 54.9°F | Suction Press: 127.5 psi | Discharge Temp (Calculated): 123.3°F | Discharge Press: 262.5 psi |
| Condenser | Saturated (Vapor-Liquid): 90.7°F | Liquid Line: 84.7°F | Subcooling: -6.0°F | |
| Evaporator | Liquid Line: 48.3°F | Saturated (Liquid-Vapor): 49.3°F | Superheating: 5.6°F | |
| Domestic Hot Water | Enabled: Yes | Setpoint: 130.0°F | Temp: 128.8°F | Pump: Off |
Modbus query: 8:53:01 PM EDT – 8:53:02 PM EDT • Generated by geothermal (Linux 6.6.74+rpt-rpi-2712): 8:53:04 PM EDT
Heat Pump Water Heater
60s
-
Last refreshed 8:53:27 PM
| Info | Manufacturer: Rheem | Model: XE65T10H45U1 | Size: 65 Gallon | |
| Air | Intake: 75.2 °F | |||
| Fan | Speed: Low speed | Low Speed Runtime: 3081.25 h | High Speed Runtime: 0 h | |
| Compressor | State: On | Runtime: 3080.64 h | ||
| Compressor | Suction Temp: 57.5 °F | Discharge Temp: 137.1 °F | ||
| Evaporator | Temp: 51.6 °F | Expansion Valve: 31.0 % | ||
| Upper Tank | Temp: 121.0 °F | Element Runtime: 173.32 h | ||
| Lower Tank | Temp: 109.3 °F | Element Runtime: 0 h | ||
| Tank | Element State: Off | Available Hot Water: 100 % | ||
| Settings | State: Auto | Mode: Heat-Pump | Target Temp: 120.2 °F | Current Temp: 121.1 °F |
Query: 8:53:01 PM EDT – 8:53:01 PM EDT • Generated by cameras (Linux 6.12.48+deb13-amd64): 8:53:02 PM EDT

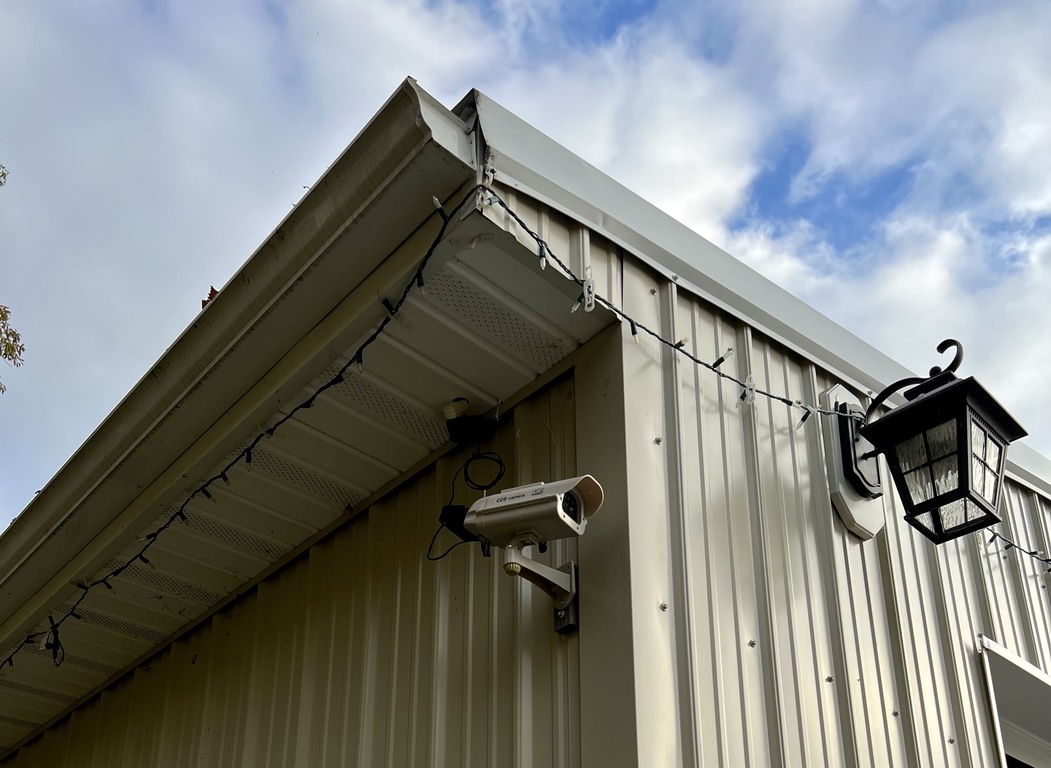

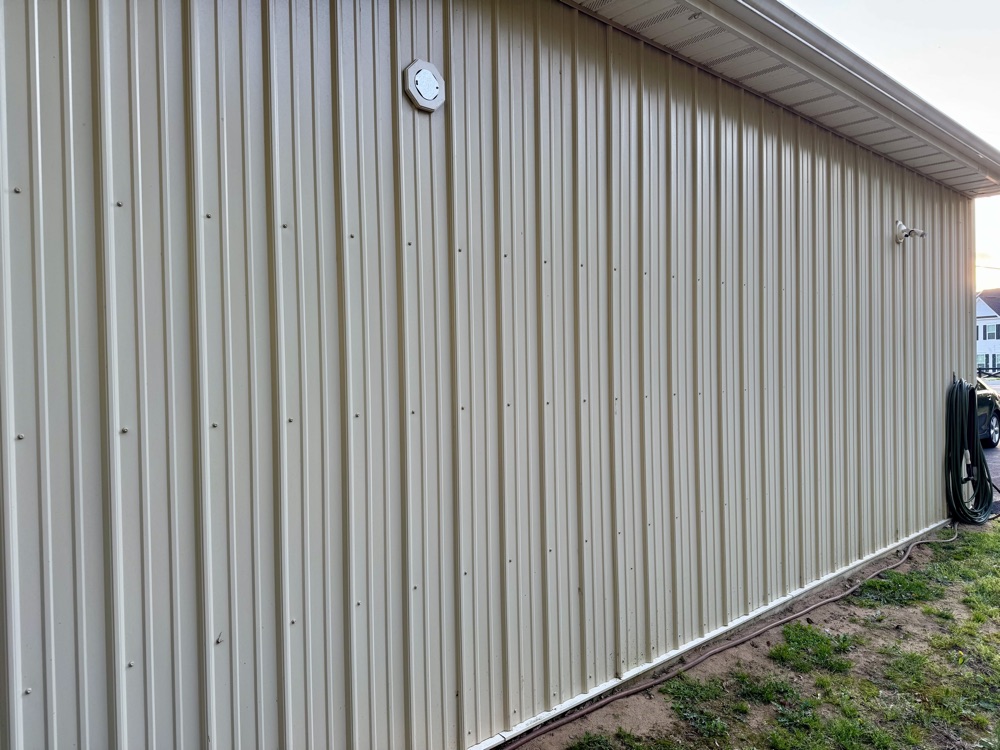

Personal Weather Station
60s
-
Last refreshed 8:53:27 PM
- Temperature: 80.5 °F
- Humidity: 74.0 %
- Dewpoint: 71.5 °F
- Heat Index: 89.3 °F
- Pressure: 29.82 in
- Shop Temperature: 82.4 °F
- Shop Humidity: 68.1 %
- Observed: 8:53:02 PM EDT
- Generated by: pws (Debian GNU/Linux 13 (trixie))
- Sensors: Outside T/RH: SHT45 • Pressure: BMP388 • Indoor T/RH: SHTC3
- Hardware: Raspberry Pi 4 Model B Rev 1.5
- KMDPASAD75 on Wunderground
